N 115/N 117/NR 211/NR 212 Nafion PFSA Membranes

DESCRIPTION
DuPont’s untreated Nafion Membrane is used to separate the anode and cathode compartment of Proton Exchange Membrane (PEM) fuel cells. It allows the exchange/passage of protons and electricity through the MEA, thus completing the circuit. DuPont’s Nafion membranes are based on chemically stabilised perfluorosulfonic acid (PSFA) / polytetrafluoroethylene (PTFE) copolymer in the acid (H⁺) form, and exhibit substantially lower flouride ion released compared to the non-stabilised polymer, indicating an improved chemical durability. Nafion PFSA membranes are widely used for PEM fuel cells and water electrolysers. GasHub is the authorised dealer for DuPont’s Nafion PFSA Membranes.
http://www.fuelcellmart.co.kr/wizhome/prdimg/thumbM_200702060733365.jpg

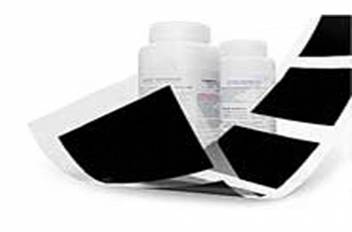

Nafion Membranes within the Membrane Electrode Assemblies (MEA)
